CyberCrystal Vest: Design Preview

Introduction

The CyberCrystal Vest is a wearable electronic fashion piece that fuses cyberpunk aesthetics, rave culture, and interactive LED technology into a single garment. By integrating custom-designed, 3D-printed crystal spikes with Neopixel LEDs, the vest reacts dynamically to movement, making it a visually striking and immersive experience for festivals, performances, and nightlife. My goal is to create a responsive wearable piece that blends futurism with personal expression, reflecting my love for EDM culture, cyberpunk fashion, and electronics experimentation.

Inspirations and Adapted Designs

Aesthetic & Cultural Influences

• Cyberpunk Fashion: Drawing from Blade Runner, Cyberpunk 2077, and the futuristic, neon-lit aesthetics of Japanese and dystopian sci-fi, the vest embraces an edgy, high-tech look with an organic, crystalline twist.
• Festival & Rave Wear: Inspired by LED-infused costumes from festivals like Burning Man and EDC, this project aims to amplify movement through reactive lighting, making the wearer more connected to their environment.

Project Vision and Specifications

Function & Interaction

• Neopixel LEDs (individually addressable) are soldered onto wires and daisy-chained inside custom 3D-printed crystals.
• The LEDs shimmer like crystalline reflections when idle and react dynamically based on movement detected by a vibration sensor:
  • Quick movement (jumping, spinning) → orange-yellow ripple outward
  • Sustained motion (dancing, running) → aggressive red pulsing
• The LEDs will be controlled via a microcontroller programmed to interpret motion signals into lighting changes.
• The crystals are modular (three different sizes) and designed with holes for sewing onto an upcycled fishing vest.

Artistic Vision

• The contrast between organic crystal formations and high-tech electronic lighting embodies the fusion of nature and technology, a theme central to Artificial Nature aesthetics.
• The black vest, chains, and LEDs reinforce the cyberpunk style, while the reactive lighting system makes the vest not just a costume but an extension of the wearer’s energy and movement.

Alternative Aesthetics Explored

While I am committed to the Cyberpunk Futurism aesthetic, I explored two alternative design directions:

1. Elderglow Vest (Fantasy Aesthetic)

• Organic materials (leather vest instead of synthetic fabric)
• Mystical runes and soft bioluminescent glow instead of sharp neon lights
• LED colors in soft blues, purples, and greens to mimic fireflies or enchanted gemstones
• Inspired by Skyrim, Elven designs, and ancient magical artifacts

2. Hazardcore Vest (Industrial Brutalism)

• Rusty metal plates & industrial textures instead of clean cyberpunk elements
• LEDs designed to look like warning lights, with harsh flickering patterns
• Rebar and metal shards instead of crystals, creating a survivalist aesthetic
• Post-apocalyptic survival gear meets high-tech integration

After considering these options, I stayed with Cyberpunk Futurism, but the Industrial aesthetic inspired me to incorporate sharper, more jagged crystal designs to make the vest feel more aggressive and powerful.

Design Process and Sketches

Step 1: Sketching and Digital Modeling

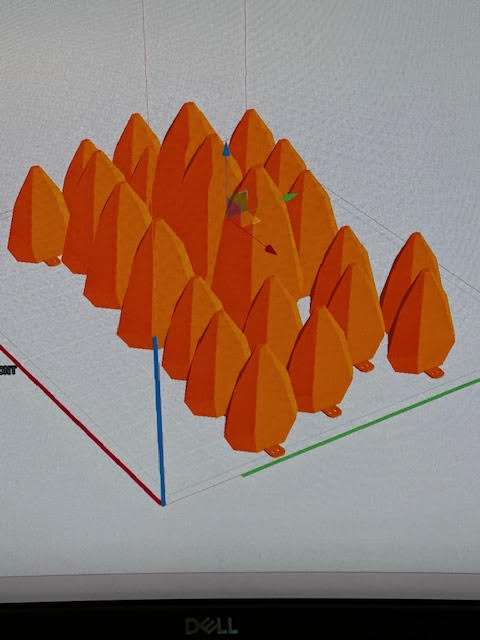

• Created three crystal sizes CAD models, each designed to hold Neopixel LEDs inside while allowing light diffusion.
• Ensured that the crystals had sewing holes for secure attachment to the vest.
• ended up scaling up by 10% to allow LEDs to fit with wiring

Step 2: Testing LED Placement and Wiring

• Wired individually addressable Neopixel LEDs in a chain for controlled animations.
• Tested how light diffused through different PLA filament types before choosing a slightly translucent white filament.

Step 3: Sourcing and Preparing the Vest

• Used an old fishing vest as a base, chosen for durability and multiple attachment points.
• Experimented with layout, deciding where each crystal spike should be positioned for balance and visibility.

---

Fabrication Process

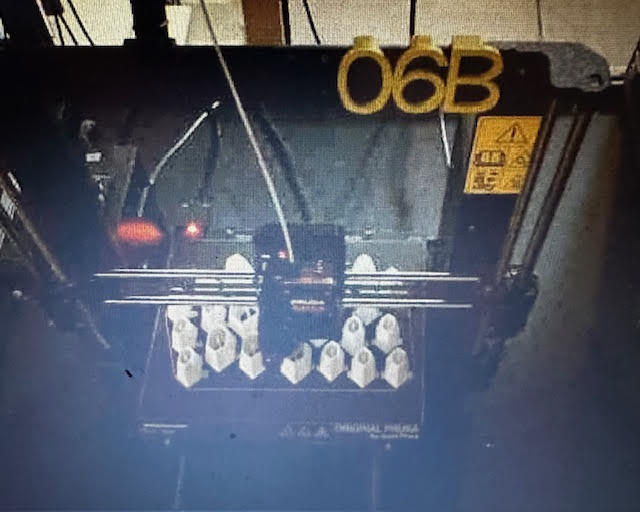

Step 1: 3D Printing Crystals

• Printed the three crystal sizes with a semi-translucent PLA filament for optimal LED diffusion.
• Adjusted the design to include proper attachment holes and ensure a snug fit for LEDs inside.

Step 2: Soldering and LED Assembly

• Wired individual Neopixels in a daisy-chain configuration.
• Ensured clean, flexible wiring to allow for natural movement on the vest.

Step 3: Sewing and Attachment

• Used reinforced thread to sew the crystals onto the vest.
• Added small protective enclosures for electronic components to prevent damage during movement.

Timeline and Project Progress

Phase	Task	Timeline
Concept Development	Sketching & Initial CAD	Completed
Material Sourcing	Fishing Vest, LEDs, 3D Printing Filament	Completed
Fabrication	3D Printing Crystals	Completed
Fabrication	Soldering LEDs & Testing Light Behavior	Completed
Assembly	Attaching LEDs to Vest	Completed
Programming	Coding Microcontroller for Motion Detection	Completed
Final Testing	Refining LED Patterns & Ensuring Durability	Next Week

Challenges Anticipated

• LED Heat Management: Ensuring long-lasting performance without overheating.
• Vest Weight Distribution: Balancing electronics and battery placement for comfort.
• Sensor Sensitivity Calibration: Adjusting the motion trigger thresholds for accurate responses.

Conclusion and Next Steps

The CyberCrystal Vest is an ambitious blend of cyberpunk fashion, wearable electronics, and kinetic self-expression. With the fabrication process well underway, the next steps are final assembly, microcontroller coding, and testing the full interaction system. This project will not only enhance my skills in electronics and wearable tech but also push the boundaries of festival and performance fashion. Looking ahead, I hope to continue refining the design, possibly integrating sound-reactive elements or additional motion effects.
