Retro-Futuristic Can-Crushing Robot Head – Design Preview Report

For my main project, I am creating a retro-futuristic robot head inspired by retro sci-fi aesthetics. This robotic head will be functional as an aluminum can crusher and as a piece of wall art. The internals of the crushing mechanism will be hidden by the facade of the robot head, and I am leaning toward a mechanical system rather than an electronic one to crush the cans. My goal is to merge form and function by designing a piece that looks like it belongs in a vintage vision of the future while also performing a useful task.

Retro-futurism, especially the sleek, optimistic, and often exaggerated design language of the 1950s and 60s, has always fascinated me. This project gives me a chance to explore that aesthetic while integrating mechanical functionality. In this blog post, I will discuss my inspirations, design vision, alternative aesthetics, initial sketches, fabrication process, and the timeline for bringing this concept to life.

The 1950s and 60s were a defining era for visions of the future, with smooth metallic surfaces, rounded shapes, and glowing elements dominating the designs of robots, spaceships, and appliances. A major influence for this project comes from the aspects seen in the classic cartoon The Jetsons, which featured the robot maid Rosey. Additionally, the photos below are prime examples of this aesthetic, highlighting reds and blues with a futuristic style that only those from the past could come up with.

Additionally, the aesthetic of atomic-age design, with its fascination with technology and space exploration, plays a role in shaping my concept. The idea of creating a device that looks like it could have been imagined in that era, complete with polished surfaces, simple yet expressive facial features, and a robust, functional build, is central to my vision.

My vision for this project is to create a robot head that not only embodies the spirit of retro-futurism but also serves a practical function. Instead of designing an entire humanoid robot, I am focusing on just the head, as this allows me to emphasize expression and aesthetic details without the complexity of full-body mechanics. Additionally, only having a head allows for a more practical piece of design for mounting on a wall, maximizing spatial efficiency.

Functionally, the robot head will be designed to crush cans. Since the internals will be hidden, I have flexibility in how this mechanism operates, but I am currently leaning toward a purely mechanical system. I am thinking of buying a lever-based mechanism that would blend in with the features of the robot head, making it interactive and functional. I want to be able to load multiple cans in the robot head, likely from the top depending on the crushing mechanism, that will be dispelled from the actuating mouth of the robot.

Visually, the design will be boxy with simplistic geometry featuring simple cylinders and rectangular prisms with a possibly metallic finish. I want the face to embody the retro-futuristic style, similar to how vintage robots often had simplistic but charming “eyes” and “mouths” formed from basic geometric shapes. As mentioned before, the mouth will be able to open and close while still being visually appealing. The color palette will likely include chrome, brushed aluminum, and accent colors such as pastel blues or reds. I hope to capture this by using a shell that essentially hides the functionality and can stand alone as an art piece. If I have time and space, I would like to incorporate some basic electronics for lighting and maybe sounds that could add to the aesthetic.

During my design process, I considered other aesthetics, such as a more rugged, industrial look inspired by dieselpunk. However, I ultimately decided that the clean and optimistic vision of 1950s sci-fi better fits my concept. I want the final piece to look like it belongs in a mid-century depiction of the future rather than a dystopian or overly complex style.

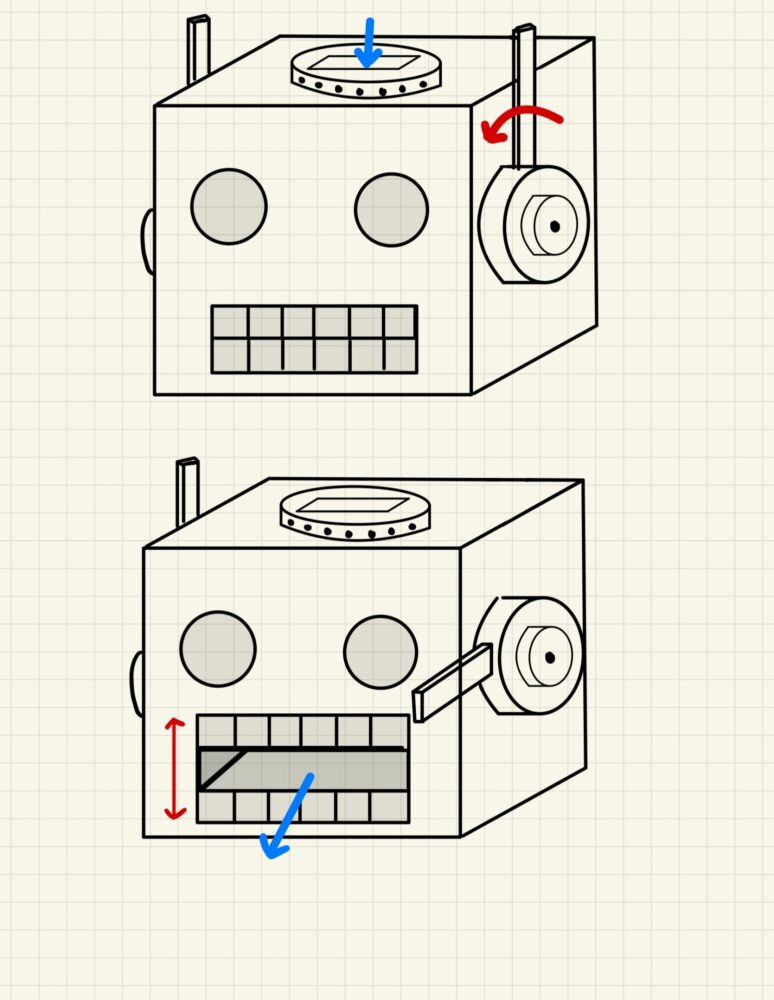

So far, I have created rough sketches to explore possible shapes for the robot head. My early concepts include basic facial features, head proportions, and potential placements for the can-crushing mechanism. My design leans toward a boxier shape as I think this will be easier to manufacture overall.

Since I am not yet at the CAD stage, these sketches serve as a visual foundation for refining the overall look. The next step will be to finalize a design that balances aesthetics with functional integration, ensuring that the crushing mechanism fits neatly within the head while maintaining the retro-futuristic appearance.

The outer shell of the head will likely be made from either metal or high-quality plastic, depending on weight and ease of fabrication. If I choose metal, I will probably bend some sheet metal into the desired shapes and weld or glue it together. Alternatively, I can 3D print a shell for the robot, likely in parts, and paint it with metallic paint to achieve the retro-futuristic aesthetic.  The mechanical system for crushing cans will likely involve a lever-based design with reinforced components to handle repeated use. Since this will be wall-mounted, I would prefer a lever to be pulled up or down, relative to the front of the robot head, versus side to side, to account for long-term reliability. I am planning to buy a can crusher and will likely alter it with some linkages since they have been highly engineered and are fairly cheap. Linkages will ensure functionality without compromising the aesthetic of the piece.

Once the core structure is built, I will add surface details such as antennae, decorative bolts, or illuminated elements to enhance the retro-futuristic style. After fabrication, I will assemble the parts and test the crushing mechanism to ensure functionality and durability. One challenge I anticipate is ensuring that the crushing mechanism operates smoothly without compromising the robot head’s visual integrity. I may need to include awkward slots for the lever to pass through, which might be displeasing to the eye. Additionally, actuating the mouth at the same time as the can crushing might prove difficult if done mechanically, and I might turn towards a servo for this function, which would require a power source. The dispelling of the crushed cans might also prove unreliable, and I might have to get creative with some internal geometry for this.

To stay on track, I have developed the following timeline:

• Week 1: Research and gather inspiration and create initial sketches.
• Week 2: Finalize design and begin CAD modeling.
• Week 3: Fabricate and assemble the crushing mechanism and test reliability.
• Week 4: Final assembly with the surrounding shell.
• Week 5: Final touches, documentation, and presentation preparation.

Potential roadblocks include material sourcing and refining the crushing mechanism. To mitigate these risks, I plan to allow extra time for testing and adjustments.

Moving forward, I will focus on refining the final design, particularly in terms of integrating the crushing mechanism seamlessly into the robot head. I am excited to see how this project develops through the design and fabrication stages, and I look forward to sharing further updates as I bring this retro-futuristic vision to life.
