Final Stretch Progress

Samuel Sawyer
Student Work
2 Comments

We’re in the final stretch and I have made significant progress on my box. I 3D modeled and rendered what I would like to build, I have bought the wood to cut out all of the individual pieces that I have laid flat by thickness in a separate 3D model file to stay organized. All that is left to do is to construct it.

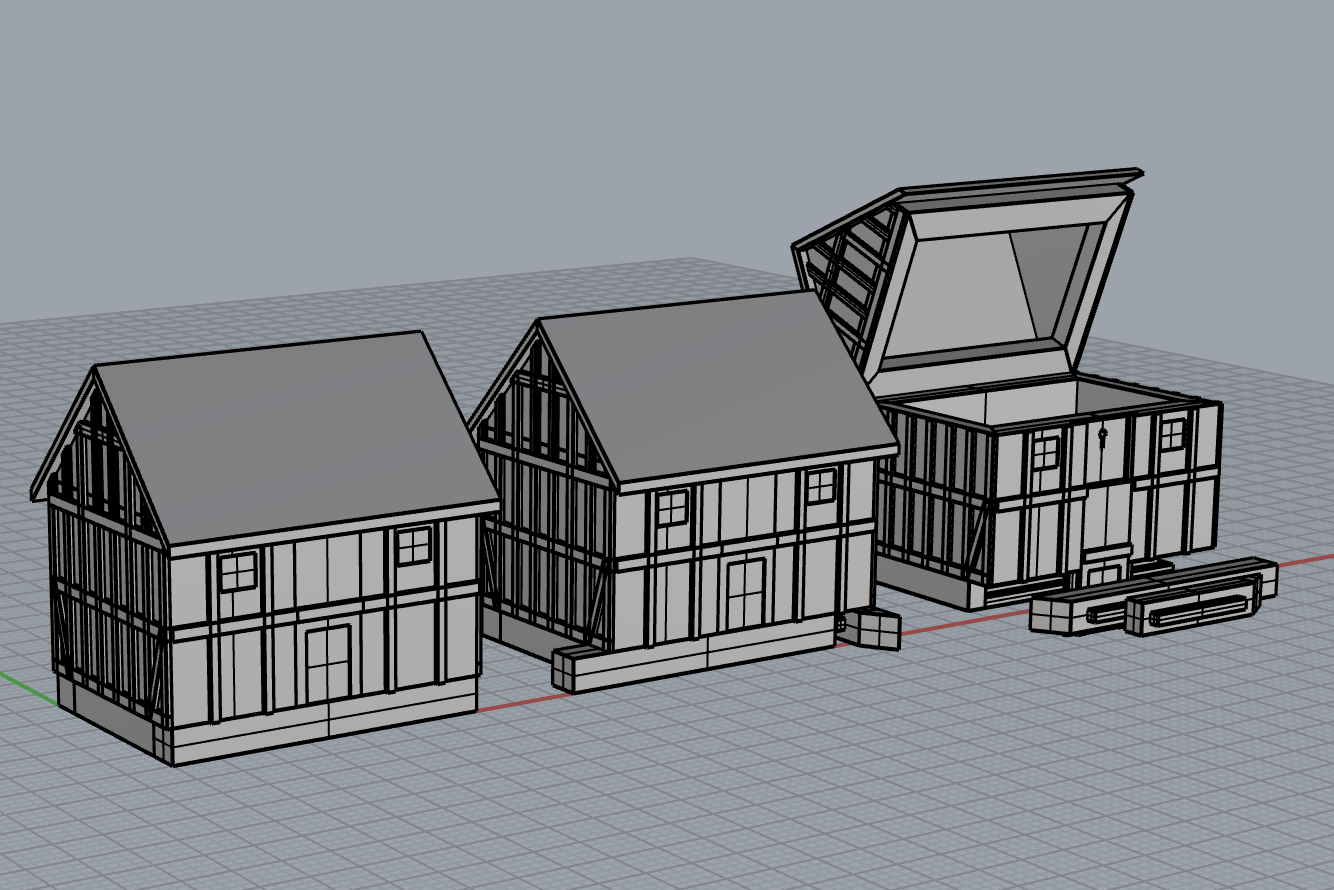

Phase 1: Closed
Phase 2: The base disassembling
Phase 3: Unlocked after full dissasembly

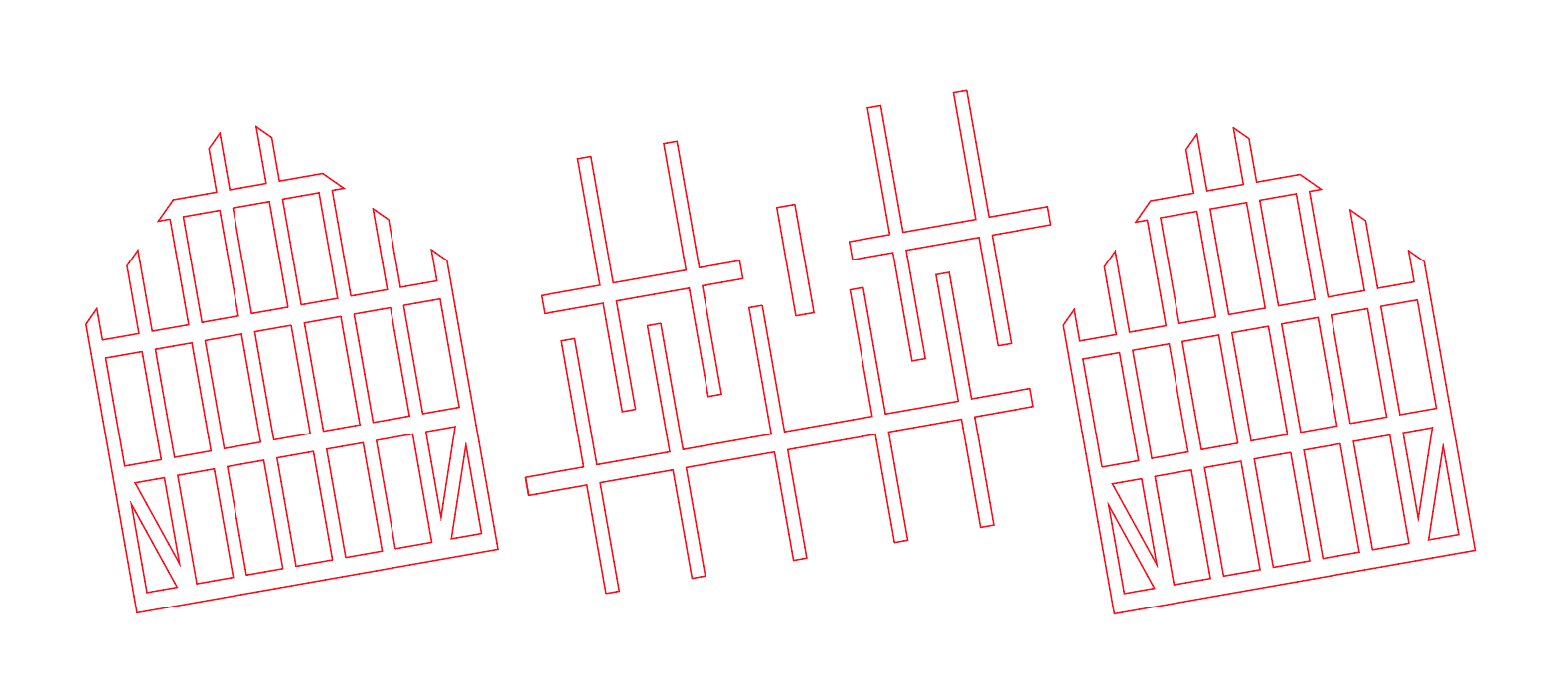

Laser cut file for Tudor style lattice work
made using Illustrator. Point width increased to show vectors easier.

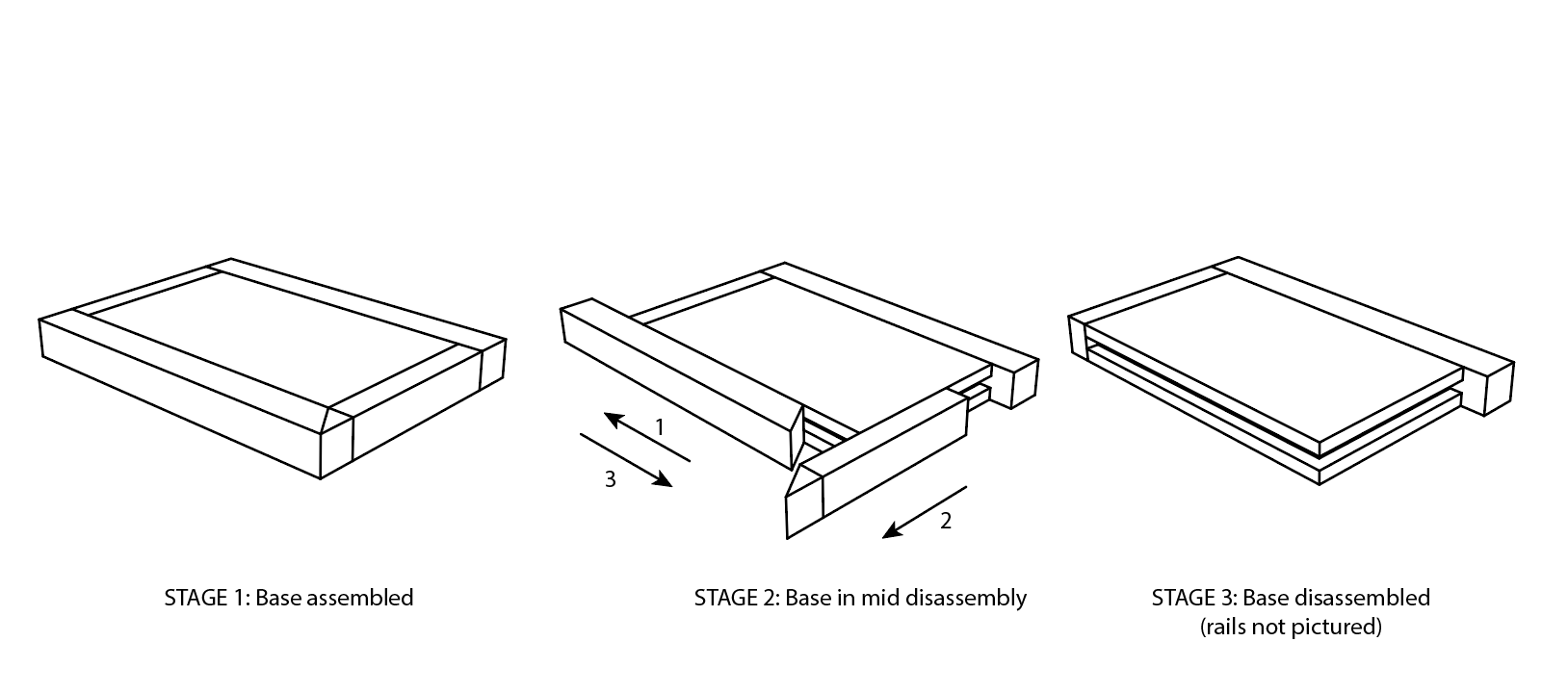

Diagram showing how the very bottom portion of the box works
Made using Illustrator.
3D model, unrendered
Made using Rhino

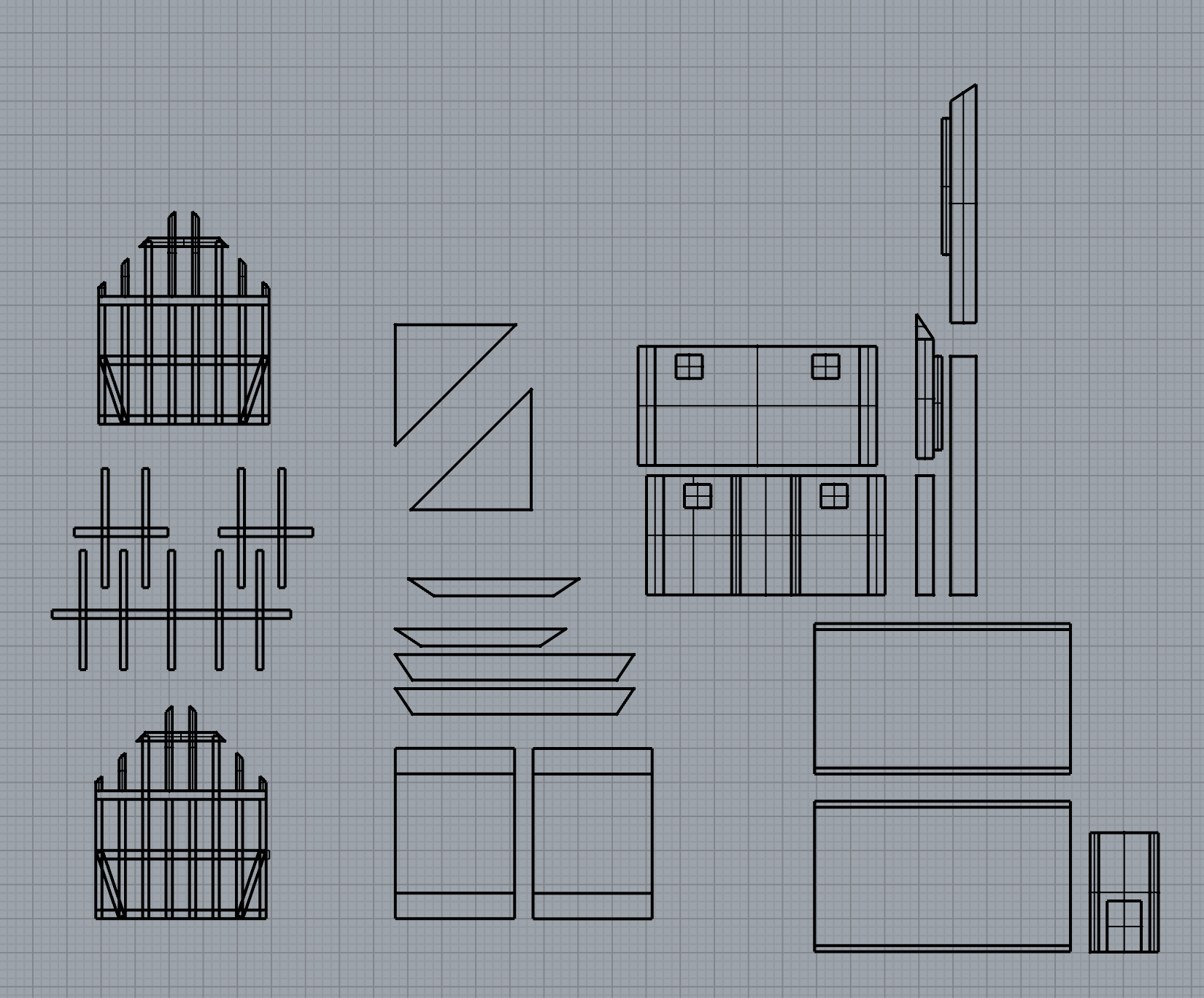

3D model containing pieces laid flat and sorted by thickness
Made using Rhino
